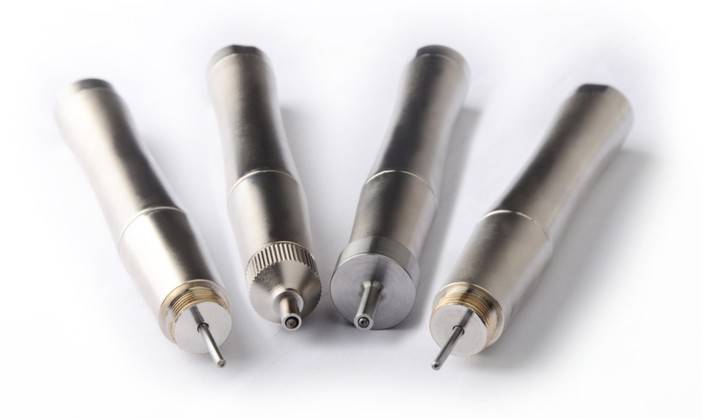

Ultrasonic Tester Manual Probes
Click to Enlarge

Manual Probe Structure: The Ultrasonic Indenter is a 136º Diamond Indenter, and the depth of indentation varies based on the Material Sample. The indentation shape is the same as Vickers and requires a High Power Microscope for observation.

Manual Probe Specifications:
Probe Type:HP-1KHP-2KHP-5KHP-10K
Order No.:75 15 0175 15 0275 15 0375 15 04
Selection:OptionalOptionalOptionalOptional
Test force:10N20N50N98N
Diameter:22mm22mm22mm22mm
Length:154mm154mm154mm154mm
Oscillating rod diameter:2.4mm2.4mm2.4mm2.4mm
Roughness of specimen surface:Ra<3.2umRa<5umRa<10umRa<15um
Weight of sample:0.3kg0.3kg0.3kg0.3kg
Min thickness of sample:2mm2mm2mm2mm
Hardness Values:
Vickers HardnessHP-1KHP-2KHP-5KHP-10K
800HV7101522
600HV8111825
500HV9121927
300HV11162535
100HV19274361
Probe Selection Guide:
Load:Probe Type:Features:Application:
98NManual std. lengthRelative large indentationSmall forgings, cast material, weld inspection, HAZ
50NManual std. lengthGeneral useInduction hardened machine parts, camshafts, turbine weld
Manual ext. length30mm extended lengthMeasurements in grooves, on gear tooth flanks and roots
Manual short probeReduced length 90mmTurbine blades, inside wall of pipes over 90mm dia.
10NManual std. lengthLoad easy to applyIon-nitride stamping dies and moulds
Manual ext. length30mm extended lengthBearings, tooth flanks
Manual short probeReduced length 90mmTurbine blades, inside wall of pipes over 90mm dia.
8NMotorized probeLoad applied by servo motorFinished precision parts, gears, bearing raceways
3NMotorized probeLoad applied by servo motorThin layers eg copper, Coatings, case hardened parts
1NMotorized probeLoad applied by servo motorThin layers and coatings
