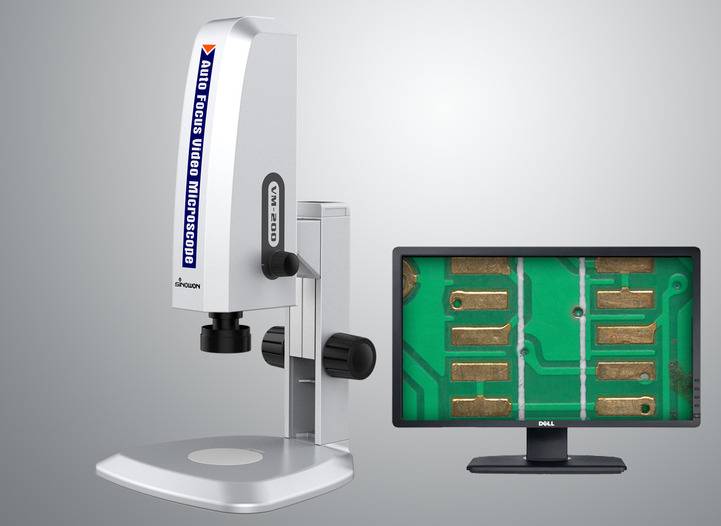

VM-200 Auto Focus Video Microscope
Click to Enlarge

The VM-200 is a Low Magnification Video Microscope with Photo, Video and Measurement with high definition 0.7 - 4.5X parallel continue zoom lens, easy and fast to switch objective magnification.

A perfect focus and sharp image is ensured due to a coarse and fine lifting system that ensures a clear image, illumination can be controlled with adjustable LED Potientiometer.

Installation is easy due to the external interface 12V power supply and USB/VGA video output.

With 2 million pixel auto focus camera, there is no need to waste time for manual focusing.

Application: Video Microscopes are widely used in observing translucent or opaque material in electronics, metallurgy, chemical and instrumentation industry. Trinocular Video Microscopy is also suitable for Medical, Agriculture, Forestry, Academic or Scientific Research.

VM-200 Video Microscope Order No.:91 50 20
Specifications:
Electronic Magnification:8X-206X(VGA 16:9 21.5 in Monitor)
0.7X - 4.5 zoom lens
Optical Objectives:Zoom ratio 6.5:1
0.5XC-mount Camera Adapter
2 million pixel (1920*1080)
Camera Parameter:Image Size: 1/2.86in. Frames per second: 30fps
Auto Focus
Camera Function:HDMI Output
White Balance; Brightness Control; Digital Noise Reduction
Surface Adjustable LED Surface Illumination
Ring Fiber Illumination Optional
Z-axis Travel: 100mm
Microscope Stand:Coarse/Fine Lifting System
Electrical Parameters:AC90-240V, 50-60Hz
Dimensions:310*285*500mm
Gross/Net Weight:7.0/4.7Kg
