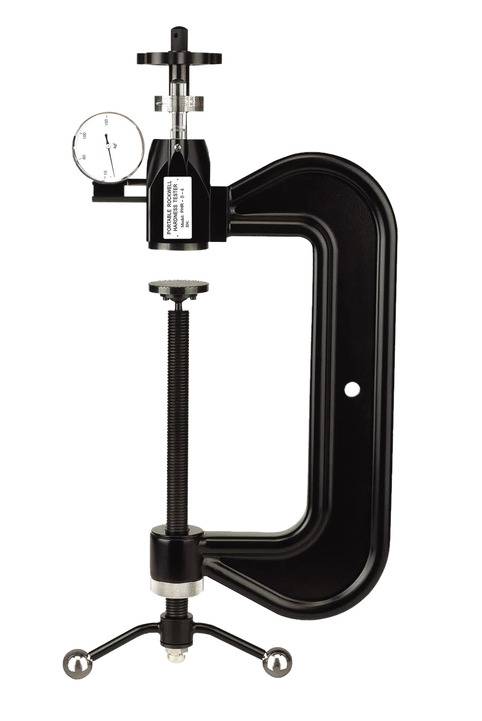

MicroStar Series PHR Hardness Tester C Clamp
Click to Enlarge

PHR Series Portable Rockwell Hardness Tester is an accurate portable hardness testing instrument for measurement of metal, steel, copper, aluminum, nickel, lead, hard alloy and plastic materials suitable to measure small and large parts. This method of hardness testing offsets the problem that the rebound hardness tester poses in accurate testing of small parts.

Test Force: 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471.3N)

Resolution: 0.5HR

15 Regular Hardness Scales: HRC,HRA,HRB,HV,HB,HS etc.

Standard Accessories: Indenter: 120º Cone Diamond, carbide Ball Indenter 1.588 mm, Flat Anvil, V-shape Anvil, 3 Rockwell Test Blocks and Carrying Case.

Conforms to ASTM Standards and ISO 6508 Metals.

PHR Series
Model:PHR-1PHR-2PHR-4-3PHR-8-4PHR-8-10PHR-20-12
Order No.:77 00 0077 00 0277 00 0477 00 0577 00 0677 00 08
Clearance:25x25mm50x50mm100x75mm200x100mm200x250mm500x300mm
