Principle of testing with SH-660 Leeb Hardness Tester: Impact and Rebound Velocities are measured by the following method: A Permanent Magnet integrated into the Impact Body passes through a Coil and induces an Electric Voltage during its forward and return travel. These Voltages are Proportional to the Velocities and are Processed and Displayed as the Hardness Value L on the Indicator. Variable function keys allow for quick change to common test parameters.
Features: ► Advanced integrated Tester (Impact Device D integrated): No cables ► Integrated impact direction Sensor ► Accuracy +/-4HL in any impact direction (360º) automatically. ► Results for all common hardness scales. ► Large high contrast LCD display. ► USB communication with PC. ► Software included. ► Rechargeable battery. ►Wireless Mini Printer .

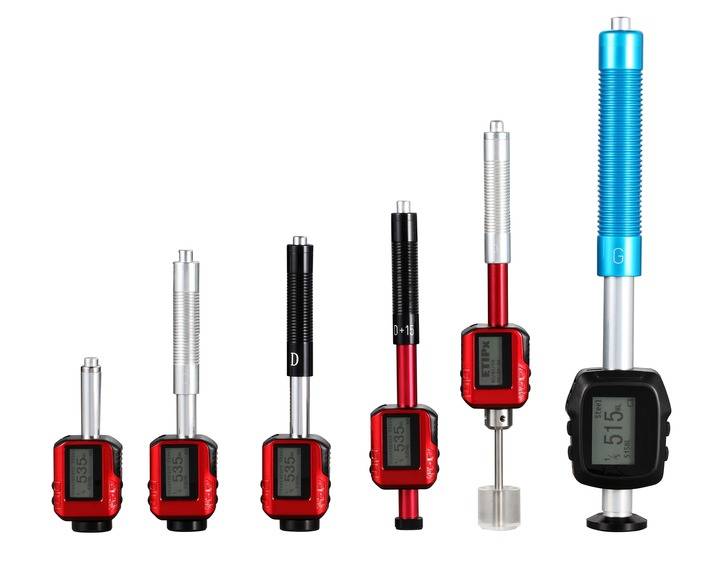

Featured Probes from left to right: DC, C, D, +15, DL, G.
Model:
Impact Device
Order No.:
Wireless D-Type
The most widely used probe used for the majority of testing applications
D
76 05 01
Digital G-Type
Short impact device, for applications in restricted spaces
DL
76 05 02
Wireless DL-Type
Reduced impact energy, for surface-hardened components
DL
76 05 03
Digital D+15 Type
Slim measuring nose, for limited space measurements
+15
76 05 04
Wireless G Type
Long impact device, for applications in restricted spaces
