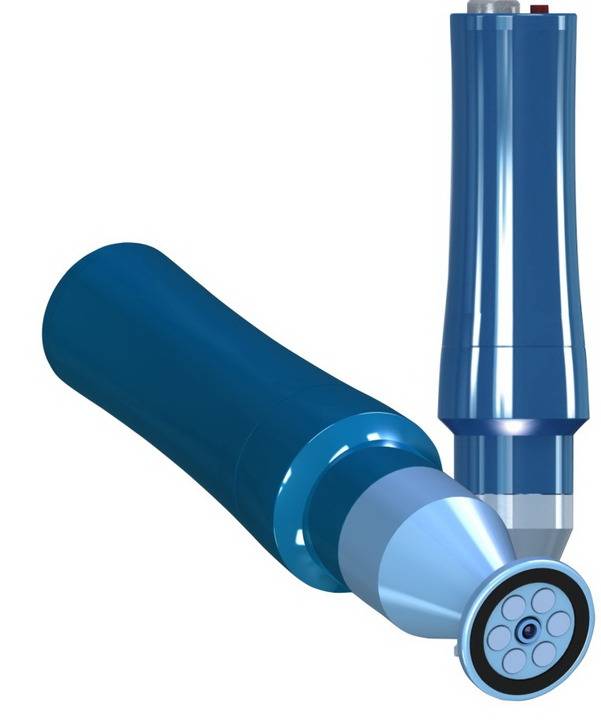

Motorized Probe Structure: The Ultrasonic Indenter is a 136º Diamond Indenter, and the depth of indentation varies based on the Material Sample. The indentation shape is the same as Vickers and requires a High Power Microscope for observation.
Motorized Probe Specifications:
Probe Type:
MP-300
MP-500
MP-1000
Order No.:
75 16 01
75 16 02
75 16 04
Selection:
Optional
Optional
Optional
Test force:
3N
5N
10N
Diameter:
46mm
46mm
46mm
Length:
197.5mm
197.5mm
197.5mm
Oscillating rod diameter:
3.7mm
3.7mm
3.7mm
Weight of sample:
0.3kg
0.3kg
0.3kg
Min thickness of sample:
2mm
2mm
2mm
Hardness Values:
Vickers Hardness:
MP300
MP500
HP-1K
HP-2K
HP-5K
HP-10K
800HV
4
5
7
10
15
22
600HV
4
5
8
11
18
25
500HV
5
6
9
12
19
27
300HV
6
8
11
16
25
35
100HV
10
13
19
27
43
61
Probe Selection Guide:
Load:
Probe Type:
Features:
Application:
98N
Manual std. length
Relative large indentation
Small forgings, cast material, weld inspection, HAZ
