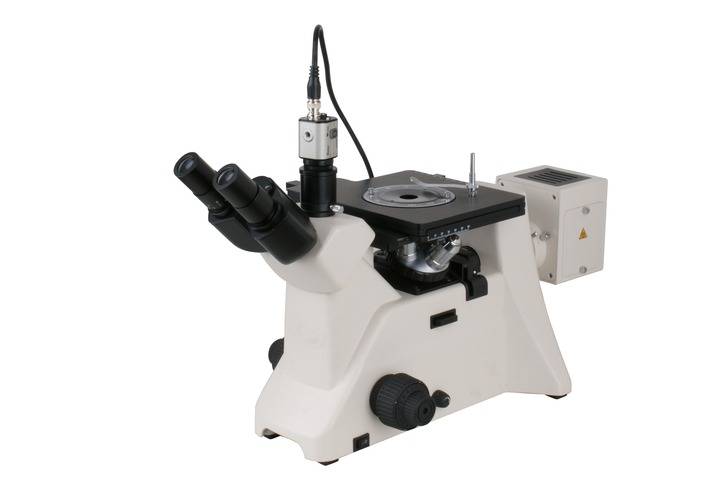

MicroStar IMS-300 Inverted Metallurgical Microscope
Click to Enlarge

IMS-300 MicroStar Metallurgical Microscope comes with metallurgical plan objectives, polarizing attachment and 1X or 0.6X C-mount for use in observations and analysis of metallurgy in the mechanical industries, research of geological or mineral department for crystals, integrated circuits, micro-electronics etc. especially suited for scientific research.

►Eyepiece High-point: 2 x EW10X/ 18, ►​2 x EW 12 5/154 ►1 x WF 10X

Micro Star 2000 Inc. will ensure compliance with National Standards, ESA Compliance and Certification.

METAVISION Image Analyser

Standard Delivery:
Model:IMS-300 Order No.: 91 10 00
Mechanical Stage:Travel Range 50x40mm
Eyepiece:Stage plate Ø10mm Ø 20mm
Objective:Plan Achromatic 4X
Objective:Plan Achromatic 10 X
Objective:Plan Achromatic 20 X
Objective:Plan Achromatic 40 X
Viewing Head:Inclined 30º Light Distribution 20:80
Nosepiece:Quintuple
Focusing:Coaxial Coarse and fine adjustment, fine division 2um
Illuminator:6V/30W Halogen Lamp adjustable brightness
Color Filter:grey, green, blue, white
Optional Accessories:
Model:Specifications:Order No.:
Objective Infinity Plan:50 X91 30 05
Objective Infinity Plan: 80 X91 30 06
Objective Infinity Plan:100 X Dry91 30 07
Objective Infinity Plan:100 X Oil91 10 15
CMOS Camera:UCC5.091 10 15
Adaptor:C-mount 1X91 30 08
Image Analysis Software:Metavision91 10 07
