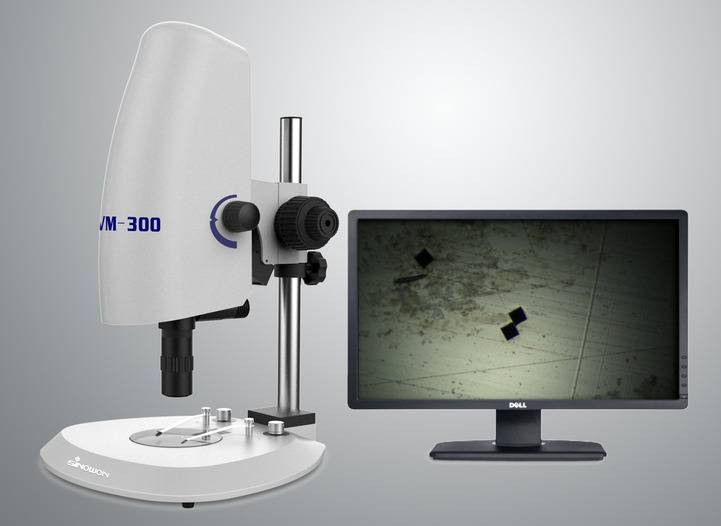

VM-300 High Magification Video Microscope
Click to Enlarge

The VM-300 is a High Definition Video Microscope with Photo, Video and Measurement with a high definition 0.7 - 4.5X horizontal zoom lens easy and fast to switch objective magnification that can be enlarged with high magnification with optional APO 5X/10X Lens.

The build in FULL HD sensor and VGA integrated Camera can directly connect with the monitor to realize video image or with the use of the SD card, to take pictures or record video.

Installation is easy due to the external interface 12V power supply and USB/VGA video output.

The optional mobile control capabilities, ensure precision measurement.

Application: Video Microscopes are widely used in observing translucent or opaque material in electronics, metallurgy, chemical and instrumentation industry. Video Microscopy is also suitable for Medical, Agriculture, Forestry, Academic or Scientific Research.

VM-300 Video Microscope Order No.: 91 50 30
Electronic Magnification:16X-2060X(16:9 21.5 in Monitor)
0.7X-4.5X zoom lens. Zoom ratio 6.5:1
Optical Objective:1XC-mount Camera Adapter
10X APO Lens: WD:35mm
2 million pixel (1920*1080)
Camera Parameter:Image Size: 1/2.86 in Frames per second: 30fps
Photograph and Video Record
Cross Line
VGA/USB Output, SD Card Storage
Camera Function:OSD: Photograph and Video Record
White Balance; Brightness Control, Digital Noise Reduction
Picture Frozen, 10X Digital Magnification
Measuring Function:Optional PC System and measuring software can measure image in the field view
Bottom: Adjustable LED Illumination
Surface: Adjustable LED Illumination
Z-axis Travel: 150mm
Microscope Stand:Coarse/Fine Lifting System
Electrical Parameters:AC90-240V, 50-60Hz
Gross/Net Weight:7.0/4 4.7 Kg
