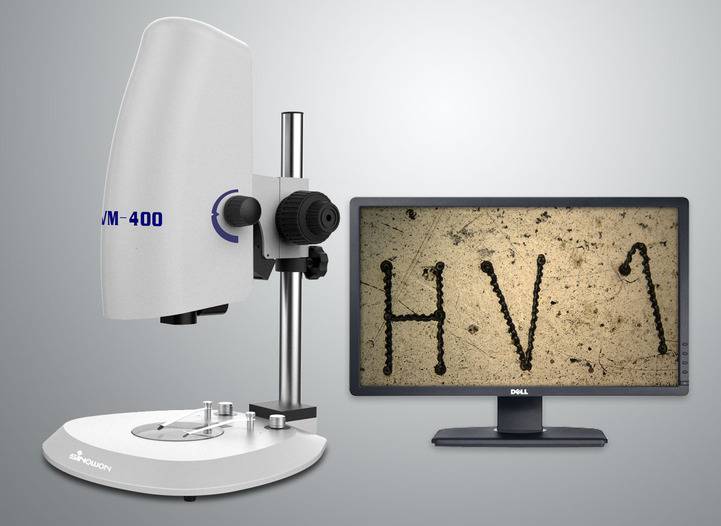

VM-400 Coxial illumination Video Microscope
Click to Enlarge

The VM-400 is a Coxial-illumination Video Microscope with precision coarse and fine lifting system ensuring perfect focus and a clear image. VM-400 has an adjustable LED bottom and surface illumination. The built-in FULL HD sensor and VGA integrated camera can directly connect with the monitor to realize video image and can also use the SD card to take pictures or record video. Video is integrated for observation and image storage.

Installation is easy due to the external interface 12V power supply and USB/VGA video out-put. The optional mobile control capabilities ensure precision measurement.

Application: Video Microscopes are widely used in observing translucent or opaque material in electronics, metallurgy, chemical and instrumentation industry. Trinocular Video Microscopy is also suitable for Medical, Agriculture, Forestry, Academic or Scientific Research.

VM-400 Coxial-illumination Vision Microscpe Order No.: 91 50 40
Electronic Magnification:16X-206X (16:9 21in Monitor)
Optical Objective:0.7X-4.5 horizontal zoom lens
Zoom ratio 6.5:1
1X C-mount Camera Adapter
Camera Parameter:2 million pixel (1920*1080)
image Size: 1/2.86 in
Frames Per Second: 30fps
Camera Function:Photograph and Video Record, Cross Line
VGA/USB Output SD Card Storage
OSD: Comprehensive digital UI design, Wireless USB 2.0 Mouse Operation.
White Balance; Brightness Control; Digital Noise Reduction
Picture Frozen, 10X Digital Magnification
Illumination:Bottom: Adjustable LED illumination
Surface: Adjustable LED illumination
Microscope Stand:Z-axis Travel: 150mm
Coarse/Fine Lifting System
Electrical Parameters:AC90-240V; 50-60HZ
Packing Dimension:445*410*355mm
Gross/Net Weight:7.0/4.7Kg
